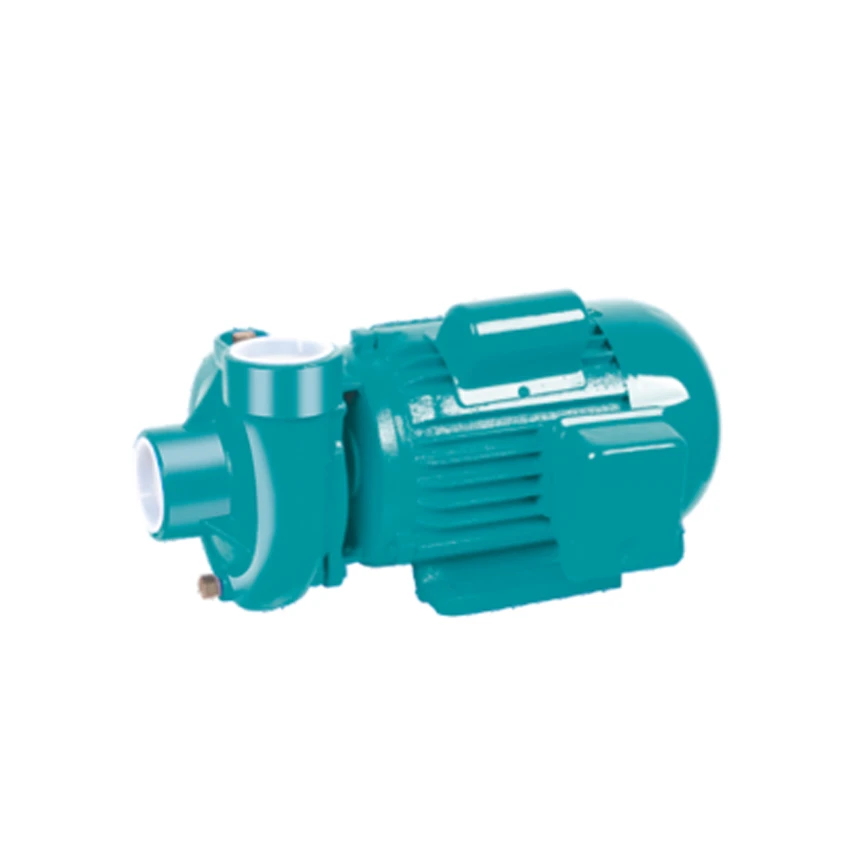

Hluav taws xob centrifugal twj tso kua mis
· Cov kua twj tso kua mis mus txog 60 degree
· Cov dej huv nrog me ntsis impurities, cov kua uas tsis muaj corrosive
MOTOR
· Ib theem, 50Hz / 60Hz
· Rwb thaiv tsev chav kawm: 130
· Kev tiv thaiv chav kawm: IP44
· Cov kua twj tso kua mis mus txog 40 degree
· Nrog thermal overload tiv thaiv
· Copper winding
TXOJ CAI DATA
|
Qauv |
Hwj chim |
Max.Flow |
Max.Head |
Max. Suct |
Inlet / qhov hluav taws xob |
Qhov hnyav |
Ntim Size |
|
|
Ib leeg Theem |
KW |
HP |
(L / min) |
(m) |
(m) |
(IN) |
(kg) |
(mm) |
|
PN -201 |
0.37 |
1/2 |
130 |
15 |
8 |
1"×1" |
7 |
275x145x180 |
|
pN -203 |
0.75 |
1 |
180 |
15 |
8 |
1 1/4"×1" |
13 |
305×160×210 |
|
PN -205 |
1.5 |
2 |
350 |
20 |
8 |
2"×2" |
15 |
375x210x235 |
|
PN -207 |
2.2 |
3 |
550 |
18 |
8 |
3"×3" |
17 |
375x210x235 |
TXOJ CAI DATA
|
Qauv |
Hwj chim |
Max.Flow |
Max.Head |
Max. Suct |
Inlet / qhov hluav taws xob |
Nyhav |
pua acking Size |
|
|
Ib leeg Theem |
KW |
HP |
(L / min) |
(m) |
(m) |
(IN) |
(kg) |
(mm) |
|
1DK-14 |
0.37 |
0.5 |
70 |
14 |
8 |
1"×1" |
7 |
275x145x180 |
|
1DK-18 |
0.60 |
0.8 |
90 |
18 |
8 |
1"×1" |
8.5 |
275x145×180 |
|
1.5 DK -20 |
0.75 |
1 |
180 |
20 |
8 |
1 1/2"×1 1/2" |
13 |
305x160x210 |
|
2DK-16 |
1.1 |
1.5 |
360 |
16 |
8 |
2"×2" |
15 |
380x220×255 |
|
2DK-20 |
1.5 |
2 |
390 |
20 |
8 |
2"×2" |
17 |
380x220x255 |
Qhov zoo
① Cov qauv yog yooj yim thiab compact. Rau tib lub ntim khoom, lub tshuab hluav taws xob centrifugal dej twj tso kua mis nyob hauv thaj chaw me me, lub teeb hauv qhov hnyav, siv cov khoom siv tsawg, thiab muaj cov kev cai tsawg dua li cov twj tso kua mis, yog li cov nqi tsim khoom thiab kev teeb tsa tsawg.
② Nws tuaj yeem khiav ntawm kev kub ceev, thiab tuaj yeem txais kev sib txuas ncaj qha ntawm 2-ncej lossis 4- ncej motors. Cov qauv sib kis tau yooj yim thiab yooj yim rau nruab.
③ Tsis muaj lub valve hauv lub twj tso kua mis centrifugal, yog li nws tsim nyog rau kev thauj mus los. Cov qauv tsim tshwj xeeb kuj tuaj yeem thauj cov kev ncua ntawm cov khib nyiab loj.
④ Lub tshuab hluav taws xob centrifugal dej twj tso kua mis tuaj yeem ua los ntawm cov khoom siv tshuaj lom neeg thiab tsim nyog rau kev thauj cov kev daws teeb meem.
Cim npe nrov: Tuam Tshoj Electric centrifugal twj tso kua mis manufacturers, lwm tus neeg, Hoobkas
